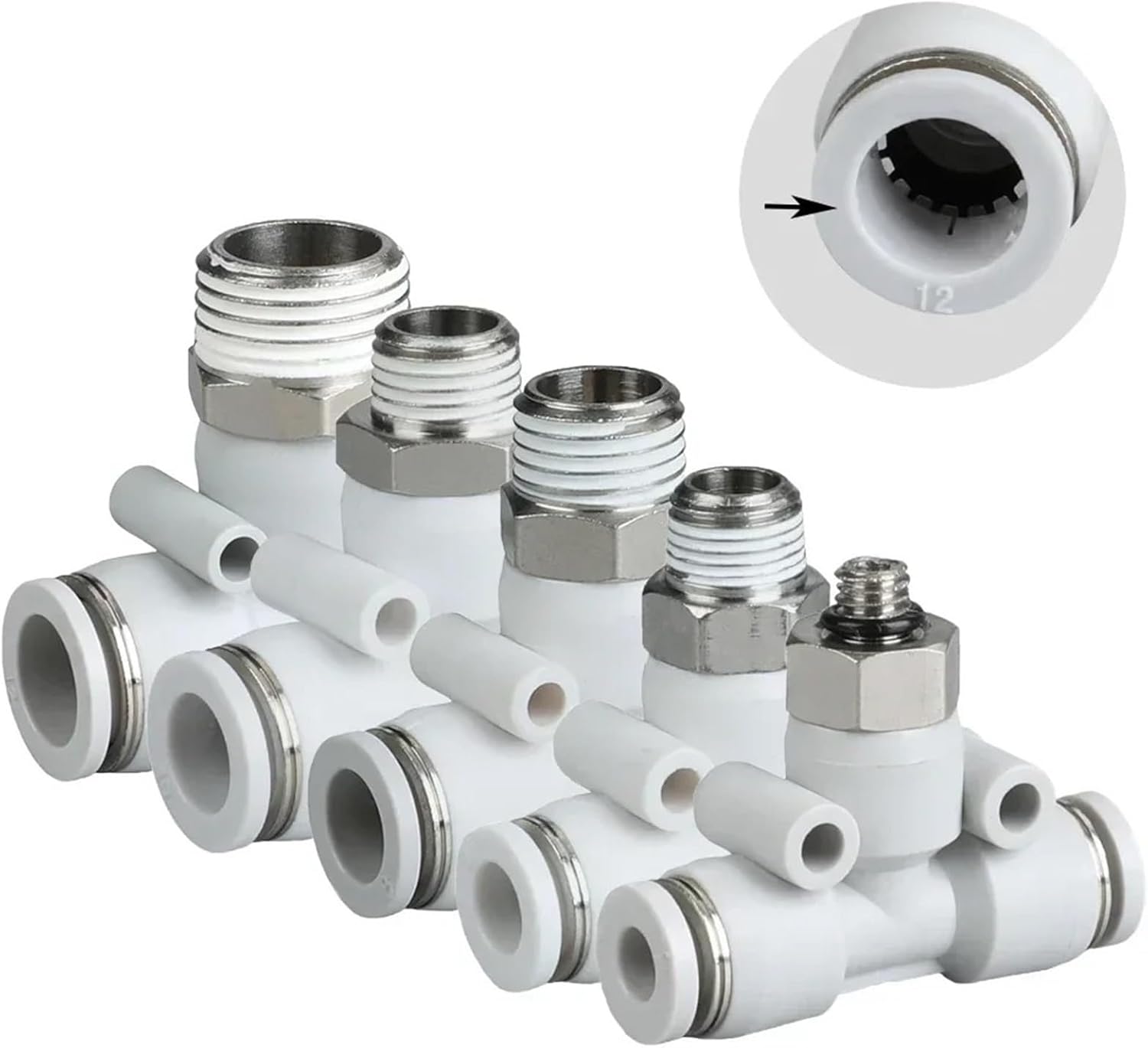

5 pcs PB Pneumatic Air Hose Fitting 4mm 6mm 8mm 10mm 12mm Male Thread Branch TEE Quick Pipe Connectors 4 6 8 12 BSPT 1/2/3/8/4(8MM Hose O.D.,02 BSP1-4)

Fittings5 pcs PB Pneumatic Air Hose Fitting 4mm 6mm 8mm 10mm 12mm 4 6 8 10 12 to Male Thread Equal BranchTEE Quick Pipe tube Adapter Connector Connectors BSPT 1/8 1/4 3/8 1/2 01 02 03 04Specification:Item No.: PBConnection Way: One-Touch Quick ConnectionType: Hose to Male ThreadDesign: Equal Run TEEMaterial: Nitrile Rubber, Plasticn , MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Hose: SolfNylon, PolyurethaneNormal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)Max.Operating Pressure: 15.0 bar(1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 0~60 (140)Hose Size OptionsType M M5*0.8 BSPT(R) 1/8 BSPT(R) 1/4 BSPT(R) 3/8 BSPT(R) 1/2 4MM Hose O.D. . . . . - 6MM Hose O.D. . . . . . 8MM Hose O.D. - . . . . 10MM Hose O.D. - . . . . 12MM Hose O.D. - . . . Installation Instructions:InstallationGrasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.RemovePush the release button to open the spring gasket so that the tubing can be released.Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety Instructions:1. Pressure: Ensure zero pressure in the tubing before removal.2. Sp
