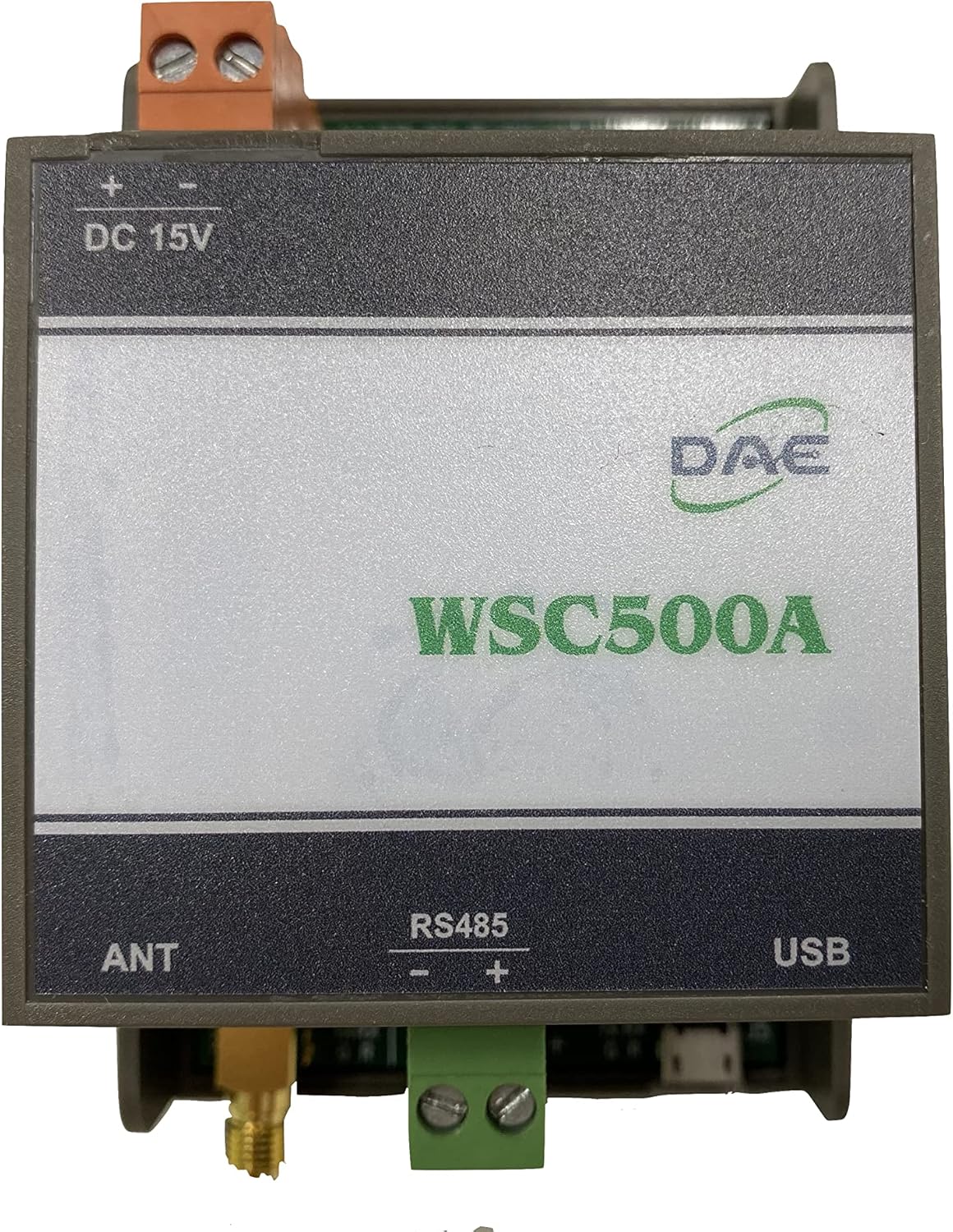

DAE WSC500A RF Converter with RS485 Output, 915 MHz

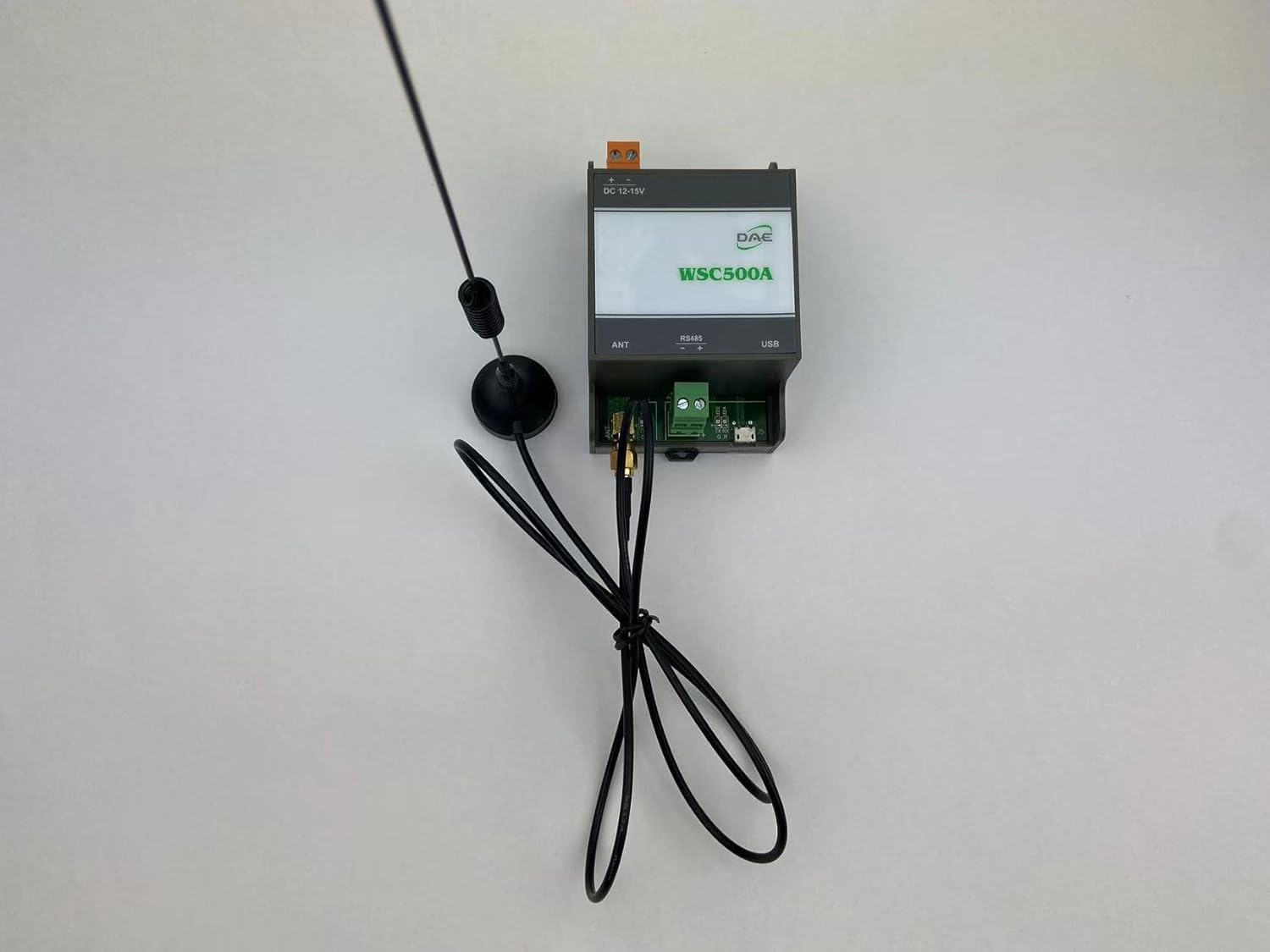

Address: 0~65535 (default 0) RS485 Baud Rate: 9600 bps (Used with the other WSC500A, or AMR130-RN) Protocol: Modbus RTU LED Indicators: RF TX/RX LED, RS485 TX/RX LED Communication: RF 900~930MHz (Default: 915MHz) Auxiliary Power: DC 12-15V / 6.2VA Operating Temperature: -40 to 85˚C (-40 to 185˚F) Operating Humidity: 0 to 90% RH (non-condensing) RF Transmission Rate: 0.3~62.5 ( Default: 2.4kbs ) Transmitter RF Output Power: 22dBm, 17dBm,13dBm, 10dBm Receiving sensitivity: -147dBm @ 2.4kbps Antenna Type: Suction type, 3.5dBiTransmission Range: 5 km (Clear weather, open area without obstacles, antenna 2 meters above the ground)Certification: FCC certified (Ref. No. VTN0035A/2020) Mount: Din Rail, TS35/7.5 or TS35/15 Communication Port: RS485 port, Terminal blockRF Port : Antenna Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.

• For DAE Wireless Cloud Metering Solutions for monitoring both water and electricity. FCC certified (Ref. No. VTN0035A/2020)
• With WSC500A RF Converter, CC2030 gateway can collect kWh data or water usage from DAE electrical meters or AMR Series wirelessly and send them to the cloud (DAE server) through Ethernet. With cell phone/PC, you can read metering data and generate billing reports. No IT guy required. Just connect wires as per a simple picture (or video) & ready to go. If there is abnormal water usage (ex. Broken piping), an email alert will be sent to your cell phone automatically.
• For existing building, hard to draw cable between AMR130AN and CC2030, please choose 1 AMR130-RN KIT + 1 CC2030 KIT + 1 WSC500A to connect them wirelessly. (3rd picture) For existing building, hard to draw cable between AMR (close to water meter) and CC2030 (close to your router), please choose 1 AMR KIT + 1 CC2030 KIT+ 2 WSC500 RF Converters to connect them wirelessly. (4th picture)
• For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly. (5th picture)With PC, cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants.
• TOU (Time of Use) billing reports are available from the DAE Cloud Metering System for electricity. Indoor use only, DAE B1725 watertight enclosure available for outdoor use. DAE Controls LLC is a Minority Business. Welcome to download NMSDC Minority Supplier Certificate from DAE Controls Website.
