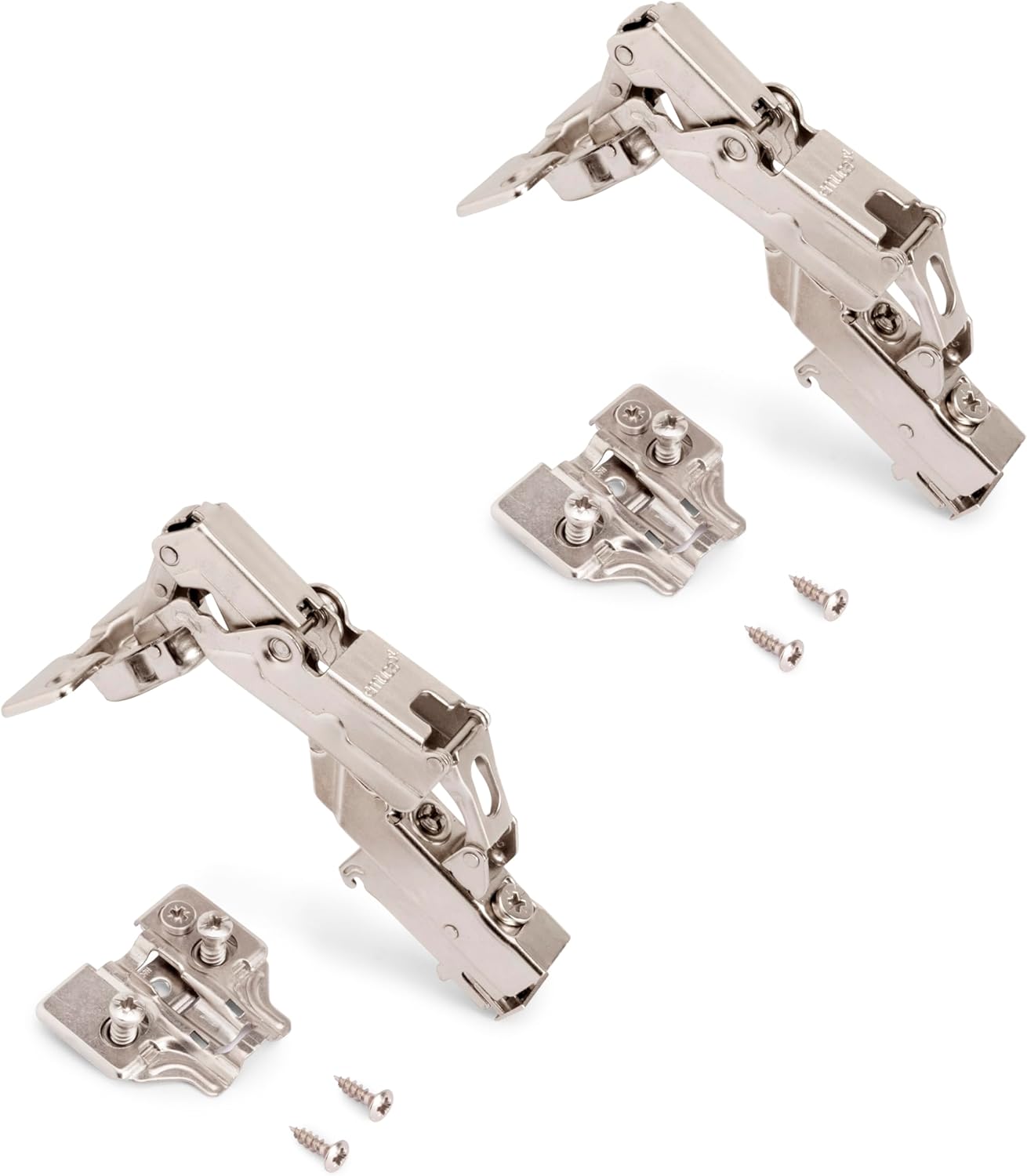

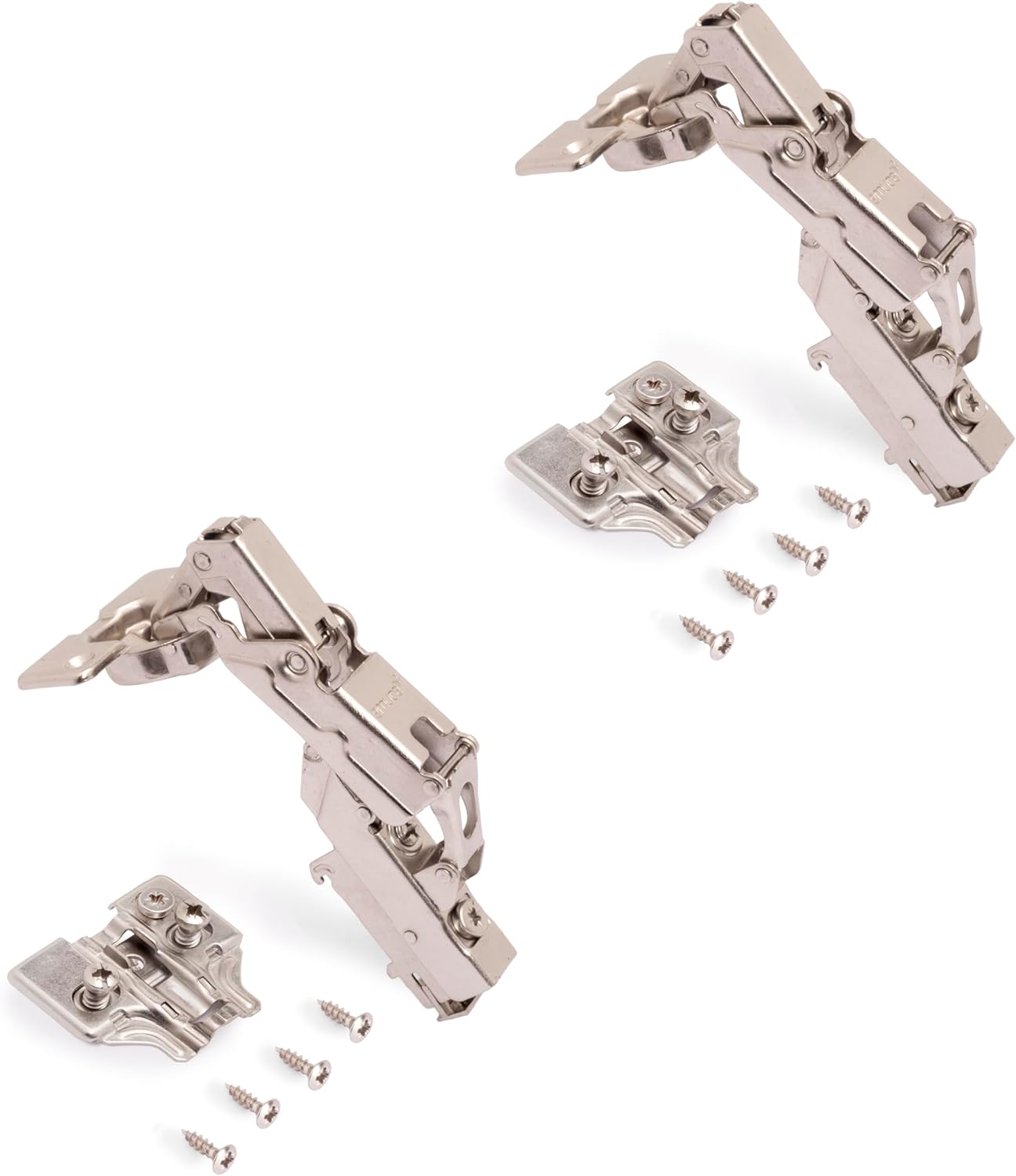

Emuca 1015207 Full-overlay soft-close concealed hinge with Ø35mm cup and 165° opening angle + Euro screw plate with cam adjustment, Set of 2 pcs

Set of concealed hinge for furniture door and fixing plate delivered in batches of 2 pieces together with the required fixing screws. They are made of nickel plated steel. They can be mounted in wooden doors with thickness between 14 and 26mm of the cabinets at home (kitchen, bedroom, bathroom, office), and they can be easily adjusted in three-dimension by means of the cam at the hinge arm and at the plate itself. Useful soft close system to prevent from noise or slam when closing the doors. Hinge details: • Ø35mm cup (Ø35x11,3mm drilling required). • Hole distance: 48mm. • Door mounting option: Full overlay application. • Soft close system. • Opening angle: 165°. Plate details: • Hole distance: 32mm. • Mounting type: Euro screw. • Cam adjustment. Package content: • 2 hinges, 2 plates and assembly screws.

• Full-overlay soft-close hinges, Ø35mm cup and 165° opening angle for door thickness from 14 to 26 mm.
• Clip-on hinge: quick release mechanism for easy installation and removal of door.
• Euro screw plate with eccentric adjustment.
• Three-dimension cam adjustment for alignment of doors.
• Each set includes 2 hinges, 2 plates and the fixing screws.
